Features
1. Big combustion furnace, spirally corrugated tubes, dust collector, automatic operation etc. can fully enhance the thermal efficiency and reduce the smoke temperature; also gets simple operation and environmental.
2. The independent water treatment device can improve the water quality before feeding into the boiler; lengthen the boiler service life.
3. DZL boiler has automatic fuel deeding/ combustion/ deslagging etc, so the user only need one worker for boiler operation. This will save much of and labour cost; and reduce the labour intensity as well.

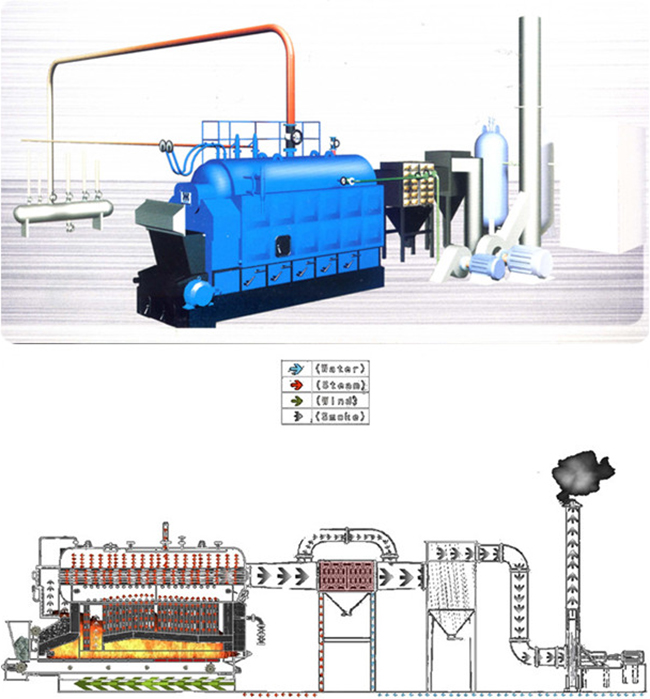

4. DZL series is packed boiler. After receiving the goods, user just need to connect the valve instrument/ fans/ chimney/ dust catcher/ water/ electricity for quick operation. And this kind of boiler has simple ignition and quick steam raising, etc features.
Steam Boiler Model
| Item/Unit/Model |
DZL1-
0.7(1.25)
|
DZL2-0.7(1.25) |
DZL4-
1.25
|
DZL6-
1.25
|
DZL8-
1.25
|
DZL10-1.25 |
| Rated steam capacity |
t/h |
1 |
2 |
4 |
6 |
8 |
10 |
| Rated working pressure |
Mpa |
0.7(1.25) |
0.7(1.25) |
1.25 |
1.25 |
1.25 |
1.25 |
| Rated steam temperature |
℃ |
171(194) |
171(194) |
194 |
194 |
194 |
194 |
| Rated feedwater temperature |
℃ |
20 |
20 |
20 |
20 |
20 |
20 |
| Heating surface |
㎡ |
39.5 |
76.12 |
135.98 |
226.72 |
396.26 |
412.3 |
| Grate area |
㎡ |
2.65 |
3.74 |
4.3 |
7.22 |
10.3 |
11.8 |
| Fuel type |
kg |
Coal |
Coal |
Coal |
Coal |
Coal |
Coal |
| Thermal efficiency |
% |
77.16 |
77 |
78 |
81 |
81 |
79.6 |
| Fuel consumption |
kg/h |
155 |
311 |
615 |
888 |
1185 |
1507 |
| Emission concentration |
mg/Nm³ |
＜80 |
＜80 |
＜80 |
＜80 |
＜80 |
＜80 |
| External Dimension |
L |
m |
4.12 |
5.6 |
6.78 |
6.92 |
7.56 |
9.5 |
| W |
m |
1.92 |
2.6 |
2.73 |
2.83 |
3.28 |
3.35 |
| H |
m |
3.25 |
3.32 |
3.25 |
3.72 |
4.25 |
4.9 |
| Boiler Weight |
t |
11.5 |
22.73 |
27.26 |
38.13 |
54.26 |
57.63 |
| Main steam valve |
mm |
50 |
80 |
100 |
150 |
150 |
150 |
| Feedwater valve |
mm |
32 |
40 |
40 |
40 |
40 |
50 |
| Safety valve |
mm |
2×40 |
2×50 |
2×50 |
2×80 |
2×80 |
2×80 |
| Drain valve |
mm |
40 |
40,50 |
40,50 |
40,50 |
40,50 |
40,50 |
| Level gauge |
mm |
25 |
25 |
25 |
25 |
25 |
25 |
Application
Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
Our Service
1. Consultation service: Experienced technicians guidance is available on the phone, and on the internet.
2. Installation service: One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
3. Training service: We also provide necessary training about boiler operation and daily maintenance to local workers.
4. Warm service: Based on customers’ request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers’ order. Every customer has the chance to visit our workshops before placing the order.
